96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement

Name: 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
Brand: ymiho
Price: 1 USD

Quality 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement wholesale

Model Number : DN96A ACV

Brand Name : ymiho

Place of Origin : Wuxi, China

MOQ : 100

Price : $1-10 / piece

Accuracy Class : 1.5

Measuring Range : can be customized

Dimensions : 96*96

Display Type : Analog Only

Operating Temperature : 0~40

Brand : YOKOGAWA

keyword : voltmeter ammeter

Bezel color : black

Accuracy : 1.5

Pointer type : lance type

Bezel Material : ABS resin

Window Material : PMMA

Case Material : ABS resin

Base Material : ABS resin

OEM : yes

Packaging Details : carton packaging

Delivery Time : 15 work days

Contact Now

YOKOGAWA 96x96 Analog Voltmeter Ammeter

High-precision YOKOGAWA 96x96 analog voltmeter and ammeter for industrial electrical measurement applications.

96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement

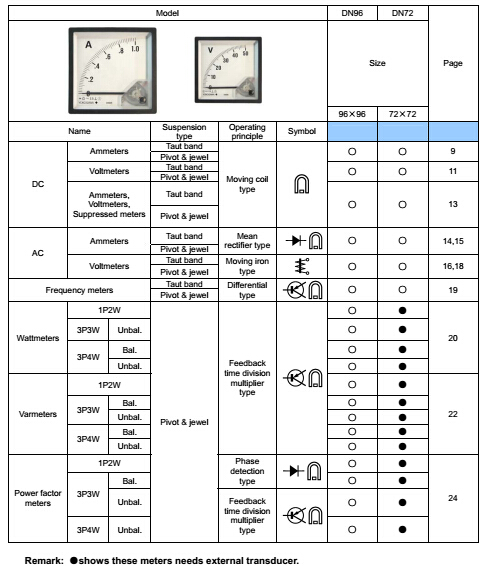

Technical Specifications

Item	DN96	DN72
Suspension type	Taut band	Pivot & jewel
Pointer type	Lance type (black color)	Lance type (black color)
Bezel color	Black	Black
Front cover dimensions	96x96mm	72x72mm
Scale length	95mm	61mm
Full scale deflection angle	90°±2°
Meter mounting position	Vertical
Insulation resistance	Between electronic circuit and the case: 500V DC/More than 10MΩ Between current circuit and voltage circuit: 500V DC/More than 5MΩ
Dielectric strength	Linemax: 500V (Ammeters only) Between electronic circuit and the case: 2000V AC for 1 minute
Operating temperature range	0~40℃
Operating Humidity range	30~75%RH
Storage temperature range	-10~50℃
Storage Humidity range	25~80%RH
Case Material	Case & Base material: ABS resin (Nonflammable) Window material: PMMA (Anti-static process) Bezel material: ABS resin (Nonflammable)
Meter Weight	DC A(1mA): Approx 160g \| Approx 115g AC A(AVE): Approx 160g \| Approx 115g AC A(I/V): Approx 155g \| Approx 115g WATT(3φ3W): Approx 320g \| Approx 115g (TRD BOX 460g) VAR(3φ3W): Approx 320g \| Approx 115g (TRD BOX 460g) P.F.(3φ3W): Approx 320g \| Approx 115g (TRD BOX 460g) FRQ: Approx 172g \| Approx 125g
